Waterproof/Waterproof Swing Barrier Low Price Good Quality Face Recognition Security Protection Turnstile Gate

Product Description

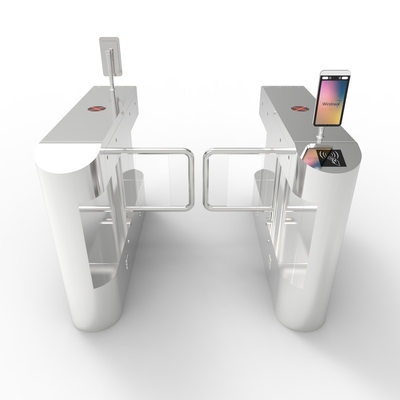

Intelligent speed gate turnstile TDZ-B209 is transparent. bright. simple and elegant, The housing material is made of 304# stainless steel with 2.0mm thickness,

The mechanism modules are servo motor and precise position encoder, make sure the speed gate can rotate quickly. quietly. stably and accurately, with low-power consumption. energy conservation and environment protection

Occasion Application

Suitable for commercial buildings, subways, airports, customs, exhibition halls, government buildings, financial institutions, clubs and other high-end indoor applications.

Customized Function:

l Built-in or external counter

l External gate open button or remote controller

l 316 grade stainless steel. Thickness of the material

l Lane width can be made based on the requirement

l Arm material organic glass, tempered glass, acrylic

l Integrate with access control system and built-in reader appointed by customers.

Feature

v By using 8 pairs of military level high-performance infrared sensors and exact algorithms. It can accurately detect the user’s passing position to achieve the purpose such as anti-tailing. Anti-reverse passing and anti-clamping etc.

v Using the multiple anti-clamping designs to protect the personal safety of passengers in maximum limit

v The widen lane is optional for carrying luggage and wheelchair access.

v Equipped with the dry contact signal input interface, compatible with all kinds of access controllers.

v It will alarm when break in illegally, followed by people,passed overtime,damaged for equipment.

v After swiping card in normal condition, if within the permitting time passages do not pass, the system will

cancel the users’ pass right and arm close automatically

v Arm automatically open when the power off to make sure safety In case of emergency

v Optional for external counter to record the people numbers for each lane

Parameters

Basic Function

² The entry and exit directional can be set independently, free mode / forbidden model

² Automatic reset function: The speed gate will open the arm after receiving the valid opening signal when standby. The speed gate will return to the hindered zero position automatically under the following situation:

--. Within the allowed time, pedestrians have been detected to pass through the passageway in specified direction;

--. Over the allowed time, there is no people passing through the passageway.

² Self-recovery function: The speed gates do not return to the hindered zero position because of human intervention. After revoking human intervention, the gate automatically return to the hindered zero position.

² Direction indicator: The direction indicator is installed on the top of the housing cabinet to indicate the valid passing direction

² Compatibility: Equipped with dry contact signal input interface can make sure compatible with all kinds of access controllers

Security Design

Ø Self-check function when power on: The system will self-check routinely and alarm when the power is on, and intelligently detect the key hardware and function. Find the hidden danger within the shortest time!

Ø Open gate when power off: Adopt the leading mechanical structure by original creation; the system will open the gate automatically when power off or manually push the gate to be open so as to evacuate people conveniently, which meets the firefighting requirement.

Ø Anti-clamping function

--. Infrared anti-clamping: Once people or some thing is detected in the anti-clamping area, the speed gate will automatically stop moving; until the people or some thing leaves the anti-clamping area, the swing gate will continue to move.

--. Machinery anti-clamping: The swing gate will automatically stop moving when it encounters obstacles, the impulse force is within the safety range when the swing gate is moving.

Ø Anti-collision function: When the speed gate is locked, it can support the impulse force within the safety range. The gate can be manually pushed slowly when the impulse force is over the safety range, so as to protect the mechanism. After revoking human intervention, swing gate automatically return to the hindered zero position.

Shenzhen Tongdazhi Technology Co., Ltd.

>Established in 2009.

>National high- tech enterprise integrating R&D, production, sales and service.

> One-stop service provider solutions for intelligent access control gate.

>Design&develop advanced access control systems.

>Independent import&export rights.

>Sold in more than 80 countries&regions.

Our Advantages:

1.Focus on solutions for entrance and exit control for 11 years.

2.Support pedestrian, access control, face recognition and software secondary development customization.

3.Provide non-standard turnstile design and customization.

4.Provide scenic spot ticketing system, smart campus, smart building solutions.

5.With high-tech enterprise certificate, ISO certificate, CE certificate,
There are 2 inventions of the main board of the turnstile and the main board of the access control;

36 patent certificates such as appearance, use of new tech, and software.

1.Can machines be used outside?

With waterproof function, can be used outside well.

2.What is the warranty for the machine?

Whithin 12 months, if any problems, we will offer the accessories free.

3.When will you make the delivery?

Our production is 3-5 days. Bulk quantity may different.

4.How does your factory control the quality?

We have professional QC apartment. each order will be examined before delievery.

5.What is your MOQ?

Any quantity is acceptable.

6.Payment term?

30% by T/T, 70% by T/T before delivery. Paypal, Western union and Money Grame are acceptable.
