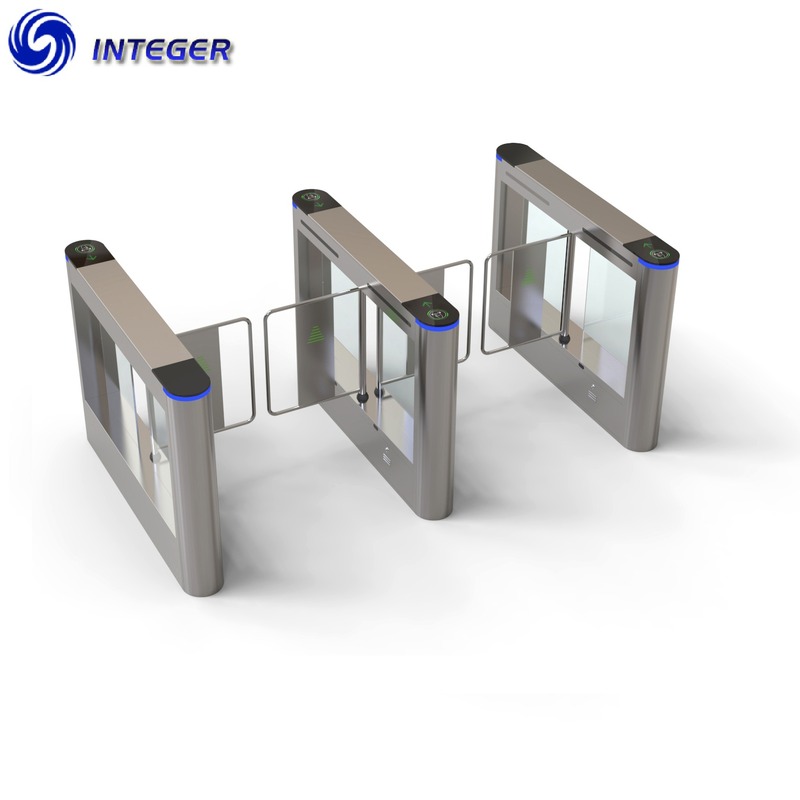

High Speed Sensitivity Automatic Turnstile Gate
Specification
Motor | Brushless servo motor | ||||||
Operating life | ≥6 million times | ||||||
Operating speed | ≥0.5s custom | ||||||
Number of sensor | 6 pairs, maximum support 8 pairs | ||||||
Dimension | 1400mm(length)*180mm(width)*1020mm(height) | ||||||
Barrier Material | 10mm acrylic sheet or stainless steel tube | ||||||
Housing material | SUS304 1.5mm | ||||||
Work blocked | Automatic return and forced closing can be selected at will | ||||||
Track detection | Digital technology 360° monitoring | ||||||
Memory function | With multiple people to quickly identify and pass | ||||||
Anti-collision | Can be automatically reset by any impact | ||||||
Side LED light | Silk screen acrylic, LED backlight | ||||||
Surface processing | Anti-fingerprint processing on the upper cover | ||||||
Other materials | 8mm tempered glass sealing plate | ||||||
Channel width | Custom ≤1200mm, standard is 800mm | ||||||
Channel width calculation | Block arm width x2=channel width | ||||||
Lead time | Within six working days |
