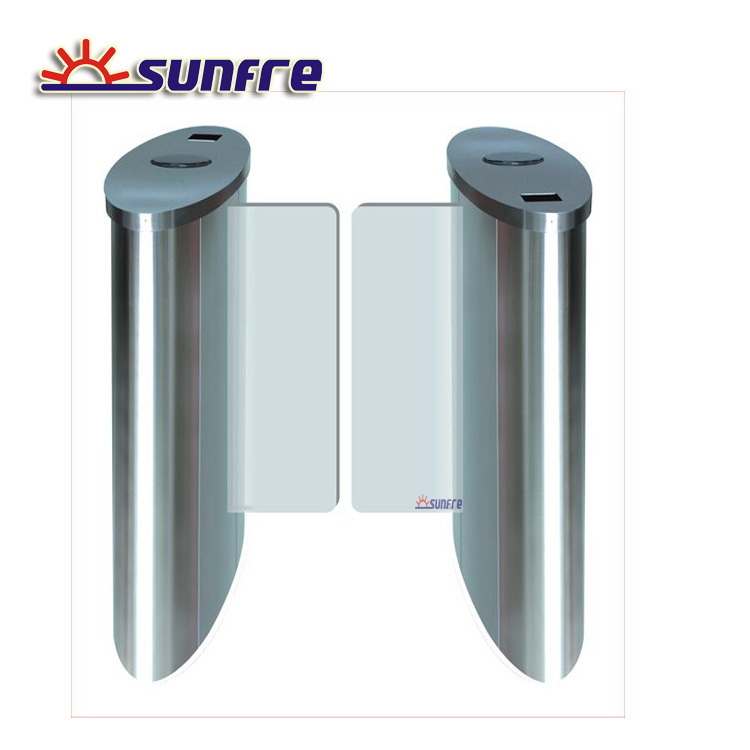

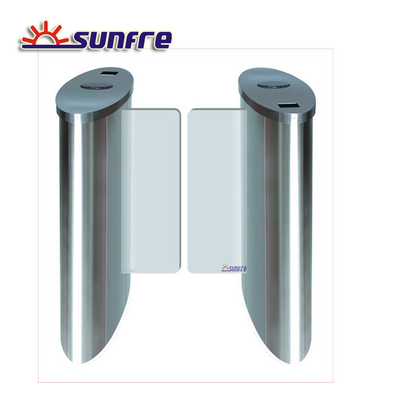

High Speed automatic electronic gate (Speedgate)
Stainless steel retractable Automatic Speed Gate
Keywords: wing barrier, swing barrier, flap barrier, security wing barrier, safety wing barrier, access wing barrier, access barrier, auto gate, arms gate, arms turnstile, rotate gate, rotate turnstile gate, arm fall turnstile gate, pedestian access gate, traffic gate, waist height turnstile, half height turnstile, full height turnstile, speed gate, entrace turnstile, entrance gate, turnstile, tripod turnstile, security turnstile, safety turnstile, turnstile gate, access control turnstile, access control gate, access gate
Technical Parameters:
| 1 | Power | AC220V±10% 50HZ |
| 2 | Operating Temperature | -45°C-60°C |
| 3 | Relative Humidity | <95%, No Densation |
| 4 | Access Width | 550 mm |
| 5 | Passing Speed | 50 persons/min. (IC Card) |
| 6 | Motor | 130W/24V |
| 7 | Motor Operation Speed | 160R/Min. |
| 8 | Communication Distance | ≤1200M |
| 9 | Input Connection | +12V Level Signal or Pulse Wide>100ms Pulse Signal, Current>100ms |
| 10 | Communication Connection | RS485 Communication Module Standard |
| 11 | Material | Stainless Steel 304, thickness is no less than 1.5mm |
| 12 | Running Life | 5-8 Million (Continuous Opening and Closing Operation) |
| 13 | Protect Level | IP 54 |
| 14 | Colour |
SSB (US32D)-Stainless Steel Brushed/Power Coating (Optional), or other Colour you like |
| 15 | Operation Place |
Subway Station, Hoverport, Tourism Sports, Exhibition, Swimming Hall, Residence Area, Enterprise Entrance and Exit Attendance, Gateway Guard, Charge Management, Special Access Control |
| PRODUCT INFORMATION | |
| Item | Automatic Speed Gate/Sliding Barrier |
| Model | SFST |
| Brand | Sunfre |
| Material | #304 High Grade stainless steel |
| Usage | Parking lots/toll gate/high way/goods yard/railway crossing |
| MOQ | 1 Set |
| ODM/OEM | Accepted |
| Shipping Ways | By sea, by air, or by Express (DHL,UPS, FEDEX,TNT, etc.) |
| Payment Terms | T/T, Western Union, Money Gram, Paypal or L/C |
| Package | Carton, or according to your requirements |
| Certification | CE, RoHS, ISO |
1. Operation:
[1] Two directions controlled / One direction controlled
[2] LED direction indication
[3] Flowing speed:
50 persons / minute in the opening mode.
35 persons / minute in the closing mode.
[4] Illegal invasion sound alarm.
[5] Anti-strike function
[6] Keep open when the power off.
Functions & Features:
1. Provide free technical training, guidance and information of our products and accessories.
2. Our technical staff could instruct our customers on the installation of barrier gates, tripod turnstiles, flap barriers, swing barriers, full height turnstiles, parking barrier lock and etc, and deal with technical and quality issues.
3. We guarantee more than 10 years’ service life of our products with 1 years’ warranty and life maintenance.
4. Once receive the customer requirements and complaints, we will response within 24 hours.
5. Free maintenance and replacement will be provided if defects result from quality failure of our product.
6. Our company will provide technical services by phone, fax, e-mail, skype etc., please refer to the contact details.
7. Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation.
8. Our company will provide perfect after-sale services and technical support.
Sunfre International Industrial (Shenzhen) Co., Ltd. is a high-tech enterprise in Shenzhen China, headquartered in Hong Kong, and now a leader in greater China in the research and development, manufacture and distribution of intelligent security and protection products and service. Sunfre products series mainly include automatic barrier gates, car parking facilities and systems, turnstiles(tripod turnstile, swing turnstile, wing turnstile, arm drop turnstile), electrical folding gate, remote control parking lot barrier, sliding gate operators, swing gate openers series products etc. Products covers a wide range series and models, and with comprehensive functions and high quality, can meet kinds of customers requirements. Sunfre Products passed the CE certification and ROHS certification, and welcome by all our customers.
Sunfre series products with its innovative design, abundant and comprehensive functions, advanced production technology, steady and trustness quality, on time delivery and thorough service win the domestic and overseas customers highly recognized. Sunfre products sell to more than 50 countries all over the world, mainly in east and south Asia, Euro, north America and south America, Oceania or other areas.
Sunfre apply itself to provide our customers with constant innovative and high quality products, services and solutions, also provides ODM,OEM service to the related products, in order to create long term and steady customer satisfaction and value for our customers.
Lead Time: less than 15 days if not custom products
Warranty time: 12 month to 24 month accordingly
...
