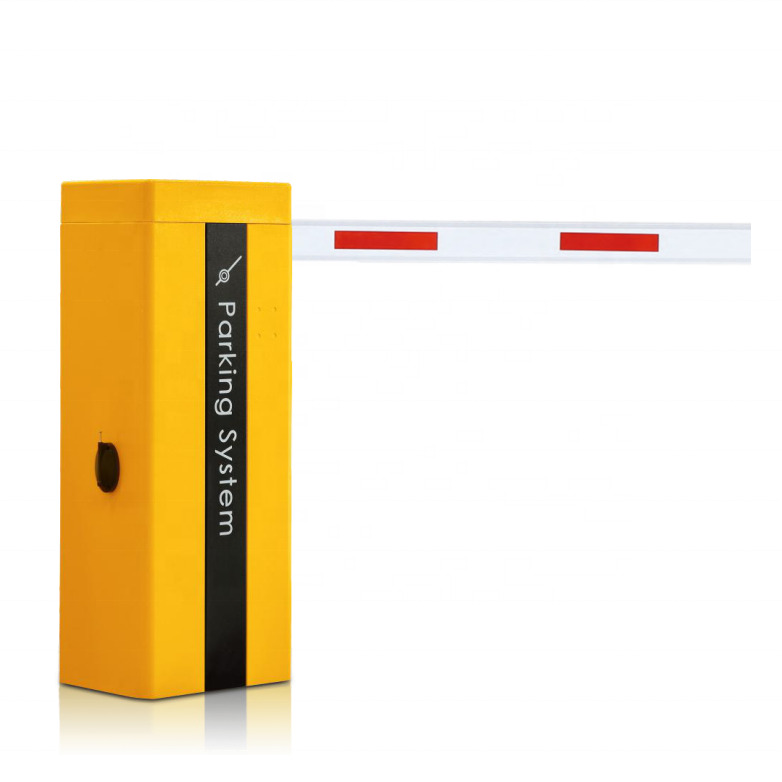

Suitable for indoor as well as outdoor parking area Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers,etc.
Production Series
Model No. | Open/Close Speed | Boom Length | Boom Type |
DZJ-S | 2,3,4,5 seconds is adjustable | 6m | straight boom |
4.5m | Two-level, fence boom | ||
4m | Three-level, fence boom |
Technical Specification
Working Temperature | -35℃~+60℃ |
Voltage | 220V±10%, 110V±10%, 50/60HZ |
Rated power | 200W |
Relative humidity | ≤90% |
Remote control distance | ≥30m |
Net weight | 42kgs |
Arm Speed | 2s,3s, 4s,5s |
Max boom length | 6 meters |
Functions & Features
1). Wheel manual release. In case of power off, rotate the wheel manual release on the bottom of the motor to raise the boom manually. When power on, the motor will work normally
2). Machine core with strong and double springs, make the machine core works more steadily
3). Die-casting aluminum alloy motor, precise and good at thermal radiation
4). Crank and rod structure makes the boom run placidly
5). Double safety limit switches (photo electricity limit switch and motor memory sensor)
6). Reversing on obstacle
7). Auto-closing
8). Support the infrared photocell for antibumping function (optional)
9). Support external and internal vehicle loop detector (optional)
10). Traffic light interface (AC220V, can support lamp with 40W)
11). Wire control (switch signal)/Remote control (418MHZ)
12). Rs485 Communication module (optional)
13). Open, close control interface for parking system
14). Provide limit state signal to parking system
Advanced Features
Function: Unti-bumping
Functio: Manual Operation When Power Off
Handwheel device to operate the barrier when power failure.
Feature: Exactitude aluminum alloy die-casting motor
Exactitude aluminum alloy die-casting motor base reduces the noise and joint abrasion to prolong the barrier gate working life.
Double limit ways (electronic limit and motor sensor memory limit) for boom rising and falling.
