Home /Products/Tripod Turnstile Gates/SUS304 stainless steel malaysia bridge style arm access control tripod turnstile hot sale automatic folding gate

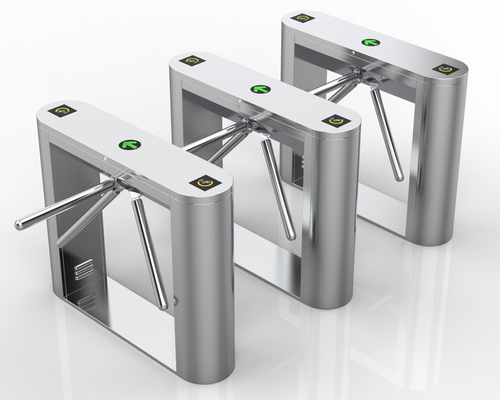

SUS304 stainless steel malaysia bridge style arm access control tripod turnstile hot sale automatic folding gate

1.0 Sets
MOQ
SUS304 stainless steel malaysia bridge style arm access control tripod turnstile hot sale automatic folding gate
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: ZC-S004
Size(mm): 1200(L)*280(W)*980(H) Standard
Cabinet Material: SUS304 Stainless Steel
Material Thickness(mm): 1.2
Working Environment: Indoor Outdoor
Passing Speed: 25person/minutes
Rotary Rod Dimension(mm): 510(standard)
Warranty: 3 Years
Failure-free Operation: ≥5,000,000 Cycles
Power Supply: AC220V±, 50Hz
Operation Temperature: -30℃~60℃
Basic Infomation
Model Number: ZC-S004
Payment & Shipping Terms
Packaging Details: The goods is packed in a cardboard box, and the outside is packed in a wooden box
Supply Ability: 1000 Set/Sets per Month
Product Description
Products Description
Benefit and Advantages:
(1)Plexiglass is used in the swipe card area and status display area, and the base color is deep black (2)Break-in alarm、Trailing alarm、Reversed break-in alarm (3)Anti-pinch function、Infrared induction function and intelligent logic judgement (4)Emergency evacuation function、Emergency-off function (5)Brushless motor control system (6)Intelligent deceleration braking system (7)Stop when get blocked or reversible system (8)Memory function of continuous swiping card (9)Normally open/ normally closed/unidirection/setting free passage condition (10)Checking working status and failure indication function when starting up (11)Standard access interface, fire linkage and remote open-close function
Product Paramenters
Physical dimensions (mm):
1200(Length) * 280(width ) * 980 (height) customized optional
Cabinet material :
SUS304 stainless steel; Surface brushed treatment; Anti-fingerprint
Material thickness (mm):
1.2
Width of passage (mm):
550 (standard passageway)
Rotary rod dimension(mm)：
510(standard)
Rotary rod motion mode:
Double-way rotation
Gate open and close responding time:
＜0.1 seconds
Gate running speed:
Rad/s (adjustable)
Average times of failure-free operation :
≥5,000,000 cycles
Pass speed:
≥25/minutes (Normally closed type)
Application environment
Indoor/outdoor
Operation temperature:
- 30°C~60°C
Operation humidity :
≤90%, none condensation
Power supply:
AC220V±，50Hz
Average power consumption (W):
60
Scope of application
Production Process
Certifications
Company Profile
FAQ
