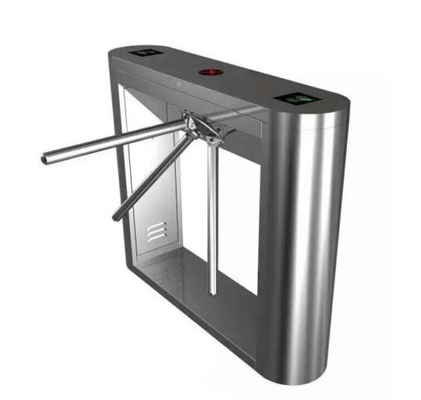

Name: Soft Face Recognition RFID Face Recognition Access Control System Security Tripod Turnstile Professional Manufacturing Pedestrian Gate
Brand: Soft Face Recognition RFID Face Recognition Access Control System Security Tripod Turnstile Professional Manufacturing Pedestrian Gate
SKU: SS-G006
Price: 249.00 USD
Availability: InStock
Rating: 4.6 (123 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: SS-G006

Product Name: Tripod Turnstile

Material: 304 Stainless Steel

Colour: Silver

Size: 1200*200*1000mm

Characteristics: Soft

MOQ: 1pcs

Gross Weight (kg): 45

Delivery Date: 25

Sample Package Description: Foam+Carton Box+Seaworthy Wooden

Basic Infomation

Model Number: SS-G006

Payment & Shipping Terms

Packaging Details: Foam+Carton Box+Seaworthy wooden

Product Description

Products Description

Quick Details.

Tripod Turnstile Tripod turnstile is the intelligent access management produced by our company after several years R & D , this equipment organically integrate machinery electronics microprocessor control,and all kinds of different reading and writing equipment. Through figuring all kinds of different reading and writing equipment,and adopting reliable performance safety protection devices real-time alarm system, and direction indicator interface, realizing the access intelligent control and management by the mutual coordination.

Model	SS-G006
Case Material	SUS304(1.2mm, 1.5mm, 2.0mm optional)/Baking varnish
Barrier Arm Material	SUS304(Acrylic Available)
Production Process	CNC Laser Cutting
Size	12002001000mm(Customization acceptable)
Power input	AC100-240V,50/60HZ
Operation voltage	DC24V, 3A, Power: 40W( Brushless Motor Optional)
Electromagentic	Duty Cycle 100%
Barrier Arm Length	500mm(Customization acceptable)
Passage Width	600mm(Customization acceptable)
Passage direction	Single directional/Bi-directional(Optional)
Operating time	1S
Throughput Rate	25-30 persons/minute(Normally Closed) or 40 persons/(Normally Open)
reset Time after Power on	3S
MCBF	5,000,000 Cycles
Automatic Reset Function	Automatically locked within set time(Time Adjustable)
LED Indcator	Yes
Operation Humidity	0~95%(No Freezing)
Operation Temperature	-10℃~+50℃
Operation Eenvironment	Indoor,Outdoor(Shelter)
Protection Level	IP45
Communication Interface	Standard RS485 interface, distance ≤1200 meters
Input Interface	Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA

SS304 Automatic Tripod Turnstile Barrier Gate Pedestrians Access Control Channel Gate Security Turnstile Swing Gate

The whole cover flat small swing turnstile, JS-XBZ001, the whole profile is stamped from the standard SS304, beautiful and generous shape, rust proof, durable, resisting external damage, adapting standard electrical interface can easily integrate the bar code card, ID card, IC card and other card readers into the equipment, to provide civilized and orderly access for pedestrians, at the same time can prevent unauthorized persons access.In addition, the system is specially designed the function to meet the fire prevention requirements to ensure that the passage is unimpeded, convenient for pedestrians timely evacuating in emergency.

Advantage

1. Adopting special ARM core micro CPU circuit and digital positioning technology, the stable start and control,the more accurate brake arm automatic control ability.

2. Smoothly Running, small noise, simple and reliable restructure.

3. The surface of the movement unit adapting anti-rust and anti-corrosion treatment, durable.

4. Providing multiple RJ45 interface and RS485/232 interface, can connect a variety of card reader, magnetic stripe, EMID, MIFARE 1 CI, Ti, and support variety data format, WIEGRAND26, WIRGRAND34, WIRGRAND66, also can connect the bar code reader, fingerprint recognizer, palmprint recognizer, face recognizer, strong compatibility, convenient for system integration. 5. Control panel with counting function, LCD/LED display function (optional)

6. Intelligent voice and sound prompts make the device more user-friendly and easier to use.

7. With auto malfunction inspection and alarm function, convenient for user maintenance and use.

8. Sound and light alarm function: including illegal break-in, trailing alarm.

9. Anti - impact function, the flap automatic locked without receiving the open signal.

10. with automatic reset function, open the gate, the system will automatically cancel the user's access authority if the pedestrians no going through in the set time, automatic reset in 5 seconds after open.

11. The barrier arm automatically unlocking and rotating when power off, automatically locked when power on

12. Available connection with access control system, consumer systems, electronic ticket system biometric system static tester and other equipments.

13. Unique two-direction anti-reverse function

14. Single-direction or Bi-direction control pedestrians access.

15. Available for remote control and management directly by computer.

Transparent Acrylic Flap 10mm thickness flap, the acrylic barrier arm width 280mm(Color Optional) Strong Mechanic Component The stamping formed motion machinism and CNC machine Connector offer the stable locking & unlocking Unique Electric Control Centre Speical designed mainboard, airr swtich and postion swithc all-one the water proof box, no rust risk in the drain.

Company Profile

Xiamen Artemis e-commerce Co., Ltd.focuses on the trade services and has own production supply chainan and R&D team. Its main categories include security protection, green plants and flowers, sports products, has 6 years of e-commerce trade service experience

company advantage.

1.Comprehensive trade services, best customer experience.

2.Independent production supply chain with guaranteed timeliness.

3.Independent R & D team to meet the needs of personalized customization.

4.Full link direct marketing mode, more cost-effective products

Sample Room

Production Process

Certifications

Packing & Shipping

FAQ

Q1: can we connect your access control system with ours? A: Yes, we provide SDK and software development services with connection ports. Q2: is your revolving door / emergency door waterproof? A: Yes, our revolving gate / emergency gate is waterproof.

Q3: how do we install those revolving doors / barrier doors? Is it easy to do?

Yes, it's really easy to install and we've done most of the work before we sent the product. You just need to screw in the gate and connect the power cable to the Internet cable.

Q4: can you make it according to our size?

A: we can provide customized services according to your detailed requirements, or design unique revolving door products according to your real site to make different sizes, software and functions.
