Home /Products/Full Height Turnstile/304 stainless steel low price guaranteed quality full height security access control rotor turnstile

304 stainless steel low price guaranteed quality full height security access control rotor turnstile

1 Piece
MOQ
$1,159.82(1 - 9 Pieces) $1,134.93(10 - 99 Pieces) $1,070.22(>=100 Pieces)
Price
304 stainless steel low price guaranteed quality full height security access control rotor turnstile
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: EG-QGZ001
Product Name: Full Height Rotor Turnstile Barrier Gate RFID Access Control System
Material: 304 Stainless Steel
Colour: Silver
Size: 1450*1500*2300mm
Production Process: CNC Laser Cutting
MOQ: 1pcs
Power Input: AC100-240V,50/60HZ
Operation Voltage: DC24V, 3A, Power: 40W
Electromagentic: Duty Cycle 100%
Basic Infomation
Model Number: EG-QGZ001
Payment & Shipping Terms
Packaging Details: Foam+Carton Box+Seaworthy wooden
Product Description
Products Description

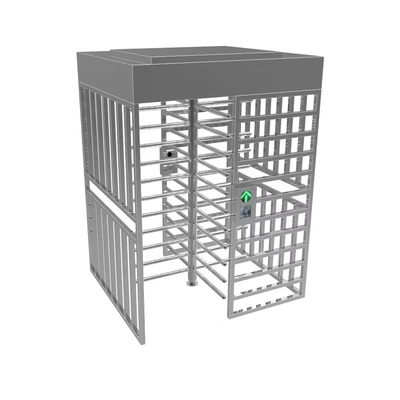

Full Height Rotor Turnstile

Single passage square roof 90° full height rotor turnstile JS-QGZ001D, the whole profile is stamped from the standard SS304, beautiful and generous shape, rust proof, durable, resisting external damage.The passageway composed of rectangular frame and barrier arm can provide orderly and civilized access for the pedestrians, prevent illegal access. The product adopt the most advanced drive control technology, which can be meet the various requirements of different modern buildings styles for intelligent access control systems by changing the design range widely. The turnstile designed for the pedestrians automatic access, with the highly perfect system, has the extensive usability, convenient for compating IC card, ID card, bar code dimension code, fingerprint, ID card and other card readert identification equipment, to achieve the access intelligent control and management.
Model
EG-QGZ001
Case Material
SS304
Barrier Arm Material
SS304
Production Process
CNC Laser Cutting
Overall Dimension
1450x1500x2300mm
Power input
AC100-240V,50/60HZ
Operation voltage
DC24V, 3A, Power: 40W
Electromagentic
Duty Cycle 100%
Barrier Barrier Arm Length
600mm
Arm Max Applied Force
600mm(Customization acceptable)
Passage direction
80Kg
Operating time
0.2S
Throughput Rate
30-35 persons/minute
Passage direction
Single directional/Bi-directional(Optional)
MCBF
5,000,000 Cycles
Automatic Reset Function
Automatically locked within set time(Time Adjustable)
Operation Humidity
0~95%(No Freezing)
Operation Temperature
-15℃~+60℃
Operation Eenvironment
Indoor,Outdoor(Shelter)
Protection Level
IP45
Communication Interface
TCP/IP
Input Interface
Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA
Transparent Acrylic Flap 10mm thickness flap, the acrylic barrier arm width 280mm(Color Optional) Strong Mechanic Component The stamping formed motion machinism and CNC machine Connector offer the stable locking & unlocking Unique Electric Control Centre Speical designed mainboard, airr swtich and postion swithc all-one the water proof box, no rust risk in the drain.
Advantage
1. Adopting special ARM core micro CPU circuit and digital positioning technology, the stable start and control,the more accurate brake arm automatic control ability.
2. Smoothly Running, small noise, simple and reliable restructure.
3. The surface of the movement unit atopting anti-rust and anti-corrosion treatment, durable.
4. Providing multiple RJ45 interface and RS485/232 interface, can connect a variety of card reader, magnetic stripe, EMID, MIFARE 1 CI, Ti, and support variety data format, WIEGRAND26, WIRGRAND34, WIRGRAND66, also can connect the bar code reader, fingerprint recognizer, palmprint recognizer, face recognizer, strong compatibility, convenient for system integration.
5. Control panel with counting function, LCD/LED display function (optional)
6. Intelligent voice and sound prompts make the device more user-friendly and easier to use.
7. With auto malfunction inspection and alarm function, convenient for user maintenance and use.
8. Sound and light alarm function: including illegal break-in, trailing alarm.
9. Anti - impact function, the flap automatic locked without receiving the open signal.
10. with automatic reset function, open the gate, the system will automatically cancel the user's access authority if the pedestrians no going through in the set time, automatic reset in 5 seconds after open.
11. The barrier arm automatically unlocing and rotating when power off, automatically locked when power on
12. Available connetion with access control system, consumer systems, electronic ticket system biometric system static tester and other equipments.
13. Unique two-direction anti-reverse function
14. Single-direction or Bi-direction control pedestrians access.
15. Available for remote control and management directly by computer.
More Product
Product Line
Our Company
Sample Room
Packaging&Shipping
FAQ
Q1: can we connect your access control system with ours? A: Yes, we provide SDK and software development services with connection ports. Q2: is your revolving door / emergency door waterproof? A: Yes, our revolving gate / emergency gate is waterproof.
Q3: how do we install those revolving doors / barrier doors? Is it easy to do?
Yes, it's really easy to install and we've done most of the work before we sent the product. You just need to screw in the gate and connect the power cable to the Internet cable.

Q4: can you make it according to our size?
A: we can provide customized services according to your detailed requirements, or design unique revolving door products according to your real site to make different sizes, software and functions.
