Item | ( single motor ), OR ( double motors ) | |

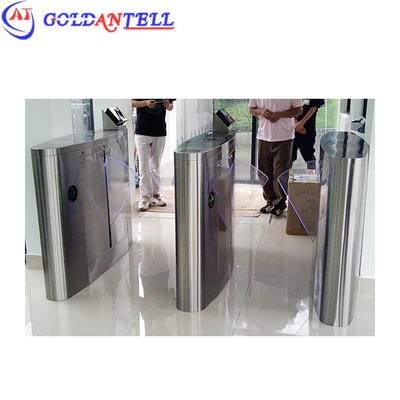

Name | Bridge type sharp flap turnstile | |
Technical parameters | ||
Size: | 1200mm (L) * 300mm (W) * 1000mm (H) | |
Retractable arm length: | 285 mm ( can be custom-made) | |
Pass speed: | 35 persons/min (open), 25-30 persons/min (closed) | |
Passage width: | ≤600mm ( or <900mm width, custom-made) | |
Normal running life: | 3 million | |
Time of opening/closing: | 0.6 second | |
Time to work after power on: | 3 seconds | |
Reset time after break down: | 10 seconds | |
Direction: | single or bi-directional (optional) | |
Drive motor: | DC 24 V brush motor | |
Working environment: | indoor/outdoor (with a tent over) -10℃～70℃ | |
Communication interface: | standard RS 485 interface, distance ≤1200m | |
Input interface: | +12V level signal or pulse width>100 ms, 12V pulse, drive current>10 mA | |
Relative humidity: | ≤90% coagulation free | |
Housing material: | domestic standard 304 # stainless steel | |
Working voltage: | AC220±10%V 50±10%HZ | |
