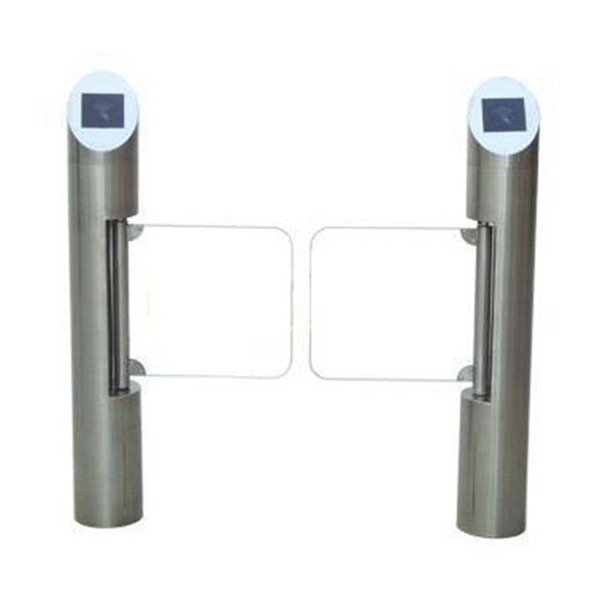

Supermarket automatic swing barrier gate entrance turnstile HZ-1278
The intelligent flap barrier is one of the serial products of intelligent passage management series from Our Company. It possesses superiority incomparable with the traditional management mode.
The outline of the product is formed after pressing the stainless steel plate. The shape is featured as a pleasing appearance, a good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into the product with read/write facilities. A special control system is equipped in the product to meet the requirement of fire control, so that the smooth passage flow is ensured, realizing a timely diverting of passengers. The product is featured as stable in performance, safe and reliable, and can be used widely in the places where passenger flow is great and monitoring is needed such as stations, harbors and guest house.
1. Problem-self-checking function.
2. Many options of working ways: Bi-direction card reading; One direction card reading and another no reading; One direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.
3. When power off, arm open automatically and power on again, arm will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.
5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.
6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the flap barrier and then take a valid card to be read for passing.
7. Flap barrier is with 485 interface for long-distrance control concern.
8. Anti-rush function: If there is no open single, arm will be holding tightly.
9. Double anti-clipping function: Photocell anti-clipping and mechanical anti-clipping. When passenger is going through the flap barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force. Also it will alarm.
10. Flap barrier is with standard electrical interface for the integration of various readers and writers.
11. Flap barrier can count how many passenger has passed and will show it in the LED display.
12. Direction display to guide passenger which direction is to go.
13. Card-reading with memory or without memory function.
14. Flap barrier can control the population inside in the control of software
| Power Supply | AC100-240V |
| Temperature | -15 to 60 degrees |
| Humidity | <95%, without concretion |
| Passage Width | <=900mm |
| Passing Speed | 35 persons/min |
| Power Consumption | 35W |
| Input Interface | +12V electrical signal or impulse signal |
| Frequency | 50-60Hz |
| drive current | >10mA |
| Communication Interface | RS485 (Distance:<=1200m) |
| Material | 304 stainless steel |
| Dimension | 560*185x1000mm |
Installation and commissioning
The metal tripod turnstile with integrated design, only 10 minutes to complete the installation or dismantling, installation and commissioning were equipped with operating instructions.
Use
1. Office space: commercial buildings, government offices, etc;
2.Science unit: universities, research institutes, libraries, etc;
3. Commercial service establishments: supermarkets, shopping malls, hotels, clubs, banks, etc;
4. Leisure and entertainment: parks, scenic areas, playgrounds, etc;
5. Transportation Sites: bus, train, subway stations, airports and so on.
