Optimized economical solution bus station automatic tripod turnstile barrier

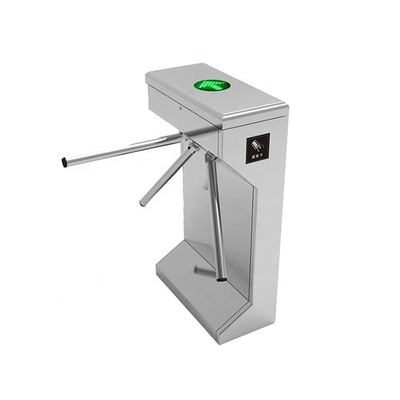

Sinomatic triopd turnstile SN-TT01 is an electro mechanical turnstile. Its unique mechanical drive design allows the
arm to be pushed effortlessly and auto-rotate back without any expensive electric motor.
Sinomatic triopd turnstile SN-TT01 can effectively control high volume human traffic (up to 30 people per minute) while still maintaining a welcoming atmosphere. They can easily be integrated with any electronic system for ticketing, ESD, RFID access control or time attendance system (access controller needed).
Sinomatic triopd turnstile SN-TT01 is better for indoor application. If needed to be installed outdoor, must with tent or shelter.
They are optimized economical solution for railway, bus station, factory, colleges, commercial building, stadium, game park, banks and etc.
1. Mechanical drive unit eliminate the use of expensive electric motor and reduce maintenance cost.
2. Lock mechanism is based on heavy duty solenoid to ensure longer life time and lesser maintenance.
3. Turnstile can be configured to be bi-directional or uni-directional.
4. Built in acrylic or plastic plate for easy integration with other devices.
5. If arm rotate more than half, It will auto-rotate to the next idle position If arm rotated less than half, it will
Description | Parameter |
Power Supply Input | AC230 ± 10V |
Power Voltage | 24 V DC |
Power Consumption During Idle | AC : 0.07 Amp DC : 0.16 Amp |
Power Consumption During operation | AC : 0.02 Amp DC : 0.72 Amp |
Passage width | 60 cm |
Response Time | 0.3 second |
Pass Speed | 25 to 30 person per minute |
Housing / Arm | Stainless Steel |
Internal Mechanism | Mild Steel |
Arm Disc | Alloy chromed |
Working temperature | -25 ℃ to + 55 ℃ |
