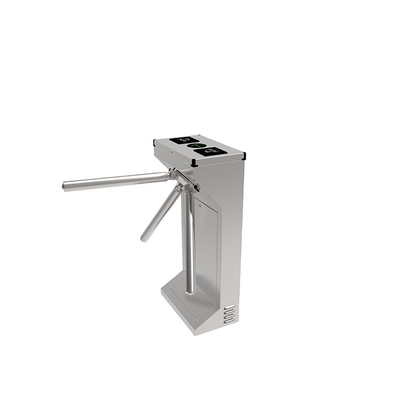

Modern easy installation semi-automatic waist high robust compact tripod drop arm turnstile gate

1.0 Pieces
MOQ
Modern easy installation semi-automatic waist high robust compact tripod drop arm turnstile gate
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: EL128
Size: 480x280x960mm
Direction: Single Or Bi-direction
Passage Width: 550mm
Package: Wooden Case Package
MCBF: 5,000,000 Cycles
Input: 100-240V
Driving Voltage: 24 V
Environment: -15°C~60°C
Material: 304 Stainless Steel
Warranty: 1 Year
Basic Infomation
Model Number: EL128
Payment & Shipping Terms
Packaging Details: Wooden case package
Supply Ability: 1000 Piece/Pieces per Month
Product Description



The advantages of using a Tripod turnstile compared to a conventional gate include the better utilization of manpower, increased reliability and improved security.
This mechanism allows a single employee to enter into the premises only after verification through the Access Control Module that is integrated onto the Tripod turnstile.
Turnstile gate can be installed in various locations like public transportation terminals, universities, banks, ministries, airports, business centers and museums etc.
Tripod turnstile can be configured to be bi-directional or uni-directional.
Housing is locked with special key to avoid tampering.

Data Sheet

Model
EL128
Size
480x280x960mm
Material
1.0mm 304 SUS Hairline #400
Pass Width
550mm
Passage direction
Single directional/Bi-directional
Pass rate
30-35 persons/minute
Operating time
0.2 seconds
Power input
AC100-240V,50/60HZ
Working temperature
-40℃~+70℃
Communication interface
RS485, Dry contact
Mechanism
Solenoid lock
MCBF
5,000,000 Cycles
Application
Bus; Station,factories,Toilets, Library

Company Information

TURBOO Automation Co. LTD is a high-tech enterprise, which specializes in turnstile gates since 2006.
It is TOP 3 manufacturer of automatic barrier turnstile gates in China.
We have our own factory 20000 square meters in Shenzhen city, nearly 500 square meters laboratory, 400 square meters showroom. We have more than 250 employees, including 50+ personnels in R & D department.
There are more 150+ patents on technical & design.
It ensures Turboo to provide high quality turnstile barrier gates and good maintain service.
Our Services
About Shipping

Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap

FAQ

1. How about your company’s actual strength?
We are the top 3 manufacturer in turnstiles in China. We have more than 200 employees, a R&D group with 20 people, 1 office and 3 factories. Factories and office buildings are 5000 square meters in total.

2. How about the quality of your products?
We are in the highest level of quality with the most competitive price. For example, we use China-Japan Baoxin stainless steel, Taiwan Minwei electric supplier, belt import from German, 3M clue import from America etc. We also have some successful cases: We installed 460 Turnstiles in Philippines’ 48 cinemas. The after-sales maintain fee is no more than $2000 per year.

3. How about the lead time?
Normally we have stock for the hot sale models of standard products.
Generally standard products need 10 working days.
The customized products need 20 working days.

4. How long is your warranty period?
12 months. Life time spare parts.

5. How about your package?
Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.
