Home /Products/Magnetic Tripod Turnstile/Thailand 3 Arm Turnstile Tripods Rfid Card Turnstile Tripod Barrier Indoor/Outdoor Hot Selling 304 Stainless Steel Tripods Outdoor Gate

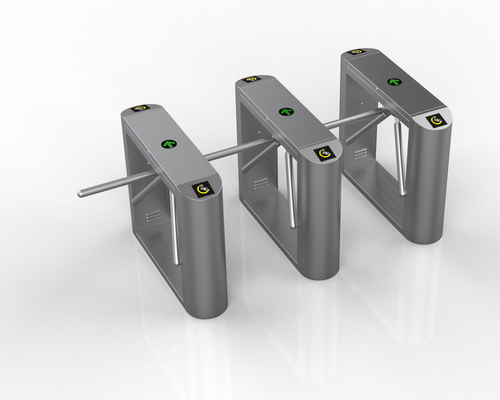

Thailand 3 Arm Turnstile Tripods Rfid Card Turnstile Tripod Barrier Indoor/Outdoor Hot Selling 304 Stainless Steel Tripods Outdoor Gate

1.0 Sets
MOQ
Thailand 3 Arm Turnstile Tripods Rfid Card Turnstile Tripod Barrier Indoor/Outdoor Hot Selling 304 Stainless Steel Tripods Outdoor Gate
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: ZC-S003
Size(mm): 1200(L)*280(W)*980(H) Standard
Power Supply: AC220V/110V
Material Thickness(mm): 1.2
Application Environment: Indoor/outdoor
Rotary Rod Dimension(mm): 510(standard)
Rotary Rod Motion Mode: Double-way Rotation
Failure-free Operation: ≥5,000,000 Cycles
Function: Fingerprint Support
Type: Semi-automatic
Warranty: 1 Year
Basic Infomation
Model Number: ZC-S003
Payment & Shipping Terms
Packaging Details: The goods is packed in a cardboard box, and the outside is packed in a wooden box
Supply Ability: 1000 Set/Sets per Month
Product Description
Products Description
Benefit and Advantages:
(1)Plexiglass is used in the swipe card area and status display area, and the base color is deep black (2)Break-in alarm、Trailing alarm、Reversed break-in alarm (3)Anti-pinch function、Infrared induction function and intelligent logic judgement (4)Emergency evacuation function、Emergency-off function (5)Brushless motor control system (6)Intelligent deceleration braking system (7)Stop when get blocked or reversible system (8)Memory function of continuous swiping card (9)Normally open/ normally closed/unidirection/setting free passage condition (10)Checking working status and failure indication function when starting up (11)Standard access interface, fire linkage and remote open-close function
Product Paramenters
Physical dimensions (mm):
1200(Length) * 280(width ) * 980 (height) customized optional
Cabinet material :
SUS304 stainless steel; Surface brushed treatment; Anti-fingerprint
Material thickness (mm):
1.2
Width of passage (mm):
550 (standard passageway)
Rotary rod dimension(mm)：
510(standard)
Rotary rod motion mode:
Double-way rotation
Gate open and close responding time:
＜0.1 seconds
Gate running speed:
Rad/s (adjustable)
Average times of failure-free operation :
≥5,000,000 cycles
Pass speed:
≥25/minutes (Normally closed type)
Application environment
Indoor/outdoor
Operation temperature:
- 30°C~60°C
Operation humidity :
≤90%, none condensation
Power supply:
AC220V±，50Hz
Average power consumption (W):
60
Scope of application
Production Process
Certifications
Company Profile
FAQ
